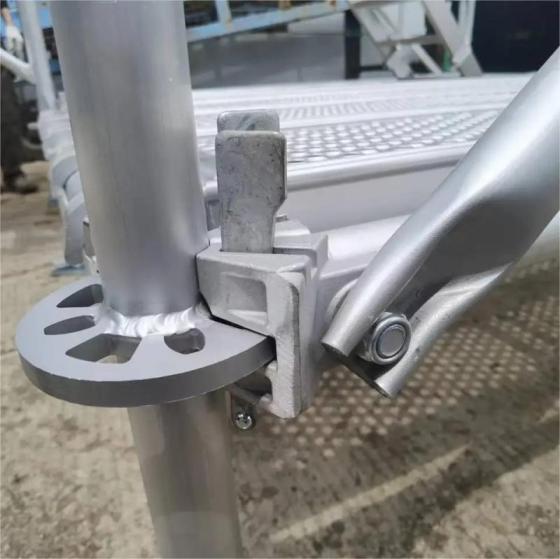

Ringlock System
1. Ringlock Standard: The vertical pole is the main supporting element of the disc system. It is usually made of Q345B high-strength steel and has excellent sturdiness and load-bearing capacity. The main function of the pole is to provide vertical support to ensure the stability of the entire scaffolding structure.
|
Specification
|
Tickness(mm)
|
Length(mm)
|
surface
|
Weight(kg)
|
|
M48
|
3.25
|
500
|
HDG
|
2.56
|
|
M48
|
3.25
|
1000
|
HDG
|
4.99
|
|
M48
|
3.25
|
1500
|
HDG
|
7.45
|
|
M48
|
3.25
|
2000
|
HDG
|
9.95
|
|
M48
|
3.25
|
2500
|
HDG
|
12.43
|
|
M48
|
3.25
|
3000
|
DHG
|
14.84
|
2. Ringlock Ledger: The crossbar is usually made of Q235 steel, and its length can be customized according to customer needs. Crossbars span between vertical poles and are used to support horizontal structures such as work platforms or support frames.
|
Specification
|
Tickness(mm)
|
Length(mm)
|
surface
|
Weight(kg)
|
|
M48
|
3.0
|
600
|
HDG
|
2.35
|
|
M48
|
3.0
|
900
|
HDG
|
3.23
|
|
M48
|
3.0
|
1219
|
HDG
|
4.17
|
|
M48
|
3.0
|
1800
|
HDG
|
5.88
|
|
M48
|
3.0
|
1829
|
HDG
|
5.95
|
|
M48
|
3.0
|
2000
|
DHG
|
6.45
|
|
M48
|
3.0
|
2500
|
HDG
|
7.88
|
3.环锁对角线：对角拉杆通常由Q195钢制成，具有一定的韧性，防止其轻易断裂。它们用于增强脚手架系统的稳定性，通过连接立柱和横杆提供额外的支撑。
|
规范
|
刻度（mm）
|
长度（mm）
|
表面
|
重量（kg）
|
|
M48型
|
2.75
|
1500*2000
|
热镀锌
|
9.87
|
|
M48型
|
2.75
|
2000*1219
|
热镀锌
|
9.50
|
|
M48型
|
2.75
|
2000*2000
|
热镀锌
|
10.55
|
|
M48型
|
2.75
|
2000*2500
|
热镀锌
|
11.78
|
4、连接附件：连接附件包括螺栓、螺母和螺栓钩，主要用于连接立杆、水平立杆和对角拉杆，确保它们能牢固地连接在一起，构建坚固的脚手架结构。
5.安全扶手和护栏：这些配件用于为工人提供脚手架上的安全，防止他们意外跌落或受伤。安全扶手和护栏通常安装在脚手架的边缘和开口处。
6.踏板和梯子：用于为工人提供方便进出脚手架的通道，以确保安全的上下作业。
